The two pin two 0110 Quick Disconnect wires connect to the microswitch tabs. Sj Jx Arcade Usb Encoder Pc Ps3 Android Ps3 Encoder Power 5v Us 10 26 5 Off Zero Delay Usb Encoder To Pc Games For Arcade Sanwa Joystick Buttons Kits Parts Use On 5 Pin Roker And 2 8mm Buttons Interface In X Arcade Wiring Diagram Jamma To Usb Wiring Diagram Usb Zero.
Zero Delay Arkade Usb Joystick Pc Ke Jamma Kontrol Usb Untuk Jamma Mame Multicade Keyboard Usb Encoder Buy Zero Delay Arcade Usb Encoder Pc Zero Delay Arcade Usb Encoder Usb Keyboard Encoder Product
Black wire serves as ground just like in any other device.
Zero delay usb encoder wiring diagram. They are wired in series between the 5V and Zero volts pin of the USB connection from the PC. The cable may be used to transfer information from 1. Couple of Zero Delay USB Encoder Questions - Im new to all this.
The cable may be used to transfer information from 1 apparatus to another. Black wire serves as ground just like in every other apparatus. A and B There should also be some daisy-chains for the red connectors.
Usb Encoder Wiring Diagram There are a number of kinds of electronics on the market. Zero Delay Usb Encoder Wiring Diagram. You can change the wiring for your Joystick if you would like.
The red one is for positive cable with DC ability of 5 liter. Lurker said in Zero Delay USB Encoder. The majority of them use USB cable.
Zero Delay USB Interface - Part 2. Support RMC on Patreon. - all of the junctions of R1R2 R3R4 R5R6 R7R8 are all linked together on the rear of the PCB by very fine tracks.
Usb Encoder Wiring Diagram. Or in case a button arrives broken. 10x red and black joystickbutton connectors.
Zero Delay USB Interface - Part 2. Usb Encoder Wiring Diagram There are many sorts of electronic gadgets available. The red one is to get positive cable with DC power of 5 volts.
According to Usb Encoder Wiring Diagram you will find only four wires used from the cable. Typically it utilizes black green red and white cable colors. USB Encoder Joystick without cable The Zero delay is the most cost effective encoder option available.
We are going to wire up the Joystick first so grab that and the ribbon cable. This wiring is suitable for Japanese style joysticks and push buttons such as the Sanwa JLF-TP-8YT Joystick and Sanwa Push Buttons. May 28 2021 USB Wiring Diagram by Yamama Usb Encoder Wiring Diagram There are a number of kinds of electronics on the market.
The PCB - YouTube. This Zero Delay Encoder comes with 110 wiring and a 5 pin ribbon cable by default. The majority of them use USB cable.
Mix and Match the joystick wiring for your Zero Delay encoder187 connections for American Style Joysticks ie. It can also connect device to a power source for charging purpose. Notes on the 3rd party knock off Chinese joystick and buttons.
That happened to me. Installation is very straight forward - simply connect your joystick and buttons to the included wiring and plug into the PCB plug the USB cable into your PS3PCLaptop or Raspberry Pi map your buttons in either RetroPi or Mame and thats it. Lurker said in Zero Delay USB Encoder.
Help with USB Zero Delay Encoder over long wire Reply 10 on. The encoder board. According to Usb Encoder Wiring Diagram there are just four wires used in the cable.
USB Wiring Diagram. Fortunately a friend of me could repair it by soldering. 12x 110 Wires for your push buttons.
Plug one end of the ribbon cable into the joystick port then plug the other end onto the 5 pins on the. Usually when you search for the zero delay controllers they will be paired up with a joystick set that you will normally see below. The manufacturers save money on the resistors by linking them all together.
Hi there - Im working on building a bartop arcade using RetroPie. Suzo Happ Competition Joysticks 5 pin ribbon cable for Japanese style Joysticks ie. One LED button of 14 wouldnt light up.
A USB male A cable to 4-pin Molex connector. October 26 2013 102737 am Hey I actually got this sorted out the ground wire on the USB Jack was frayed and down to only one stand of wire. Most of them use USB cable.
Oleh admin Juli 14 2020 Posting Komentar. At the junction of the 2 resistors the voltage will be 25 Volts. By default comes with.
An extra button in case one breaks is a good answer too. Understanding usb encoder wiring diagram will probably likely to be great for you. One daisy-chain for ground like the black wire below and one daisy-chain for 5v like the red wire below.
I recently purchased all the bits for my controls including a Zero Delay USB controller however I have a couple of questions regarding how to connect the Sanwa Joystick JLF-TP-8Y-SK via the 5 pin wire harness. Typically it utilizes black black red and white wire colors. JLF-TP-8YT joysticks Click on the image below for the full size wiring diagram.

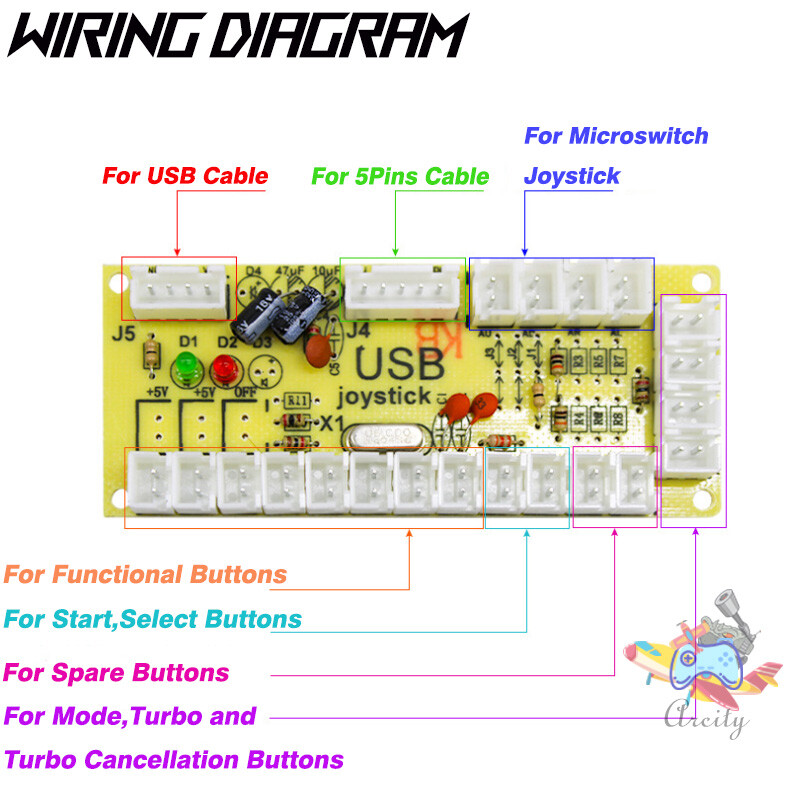

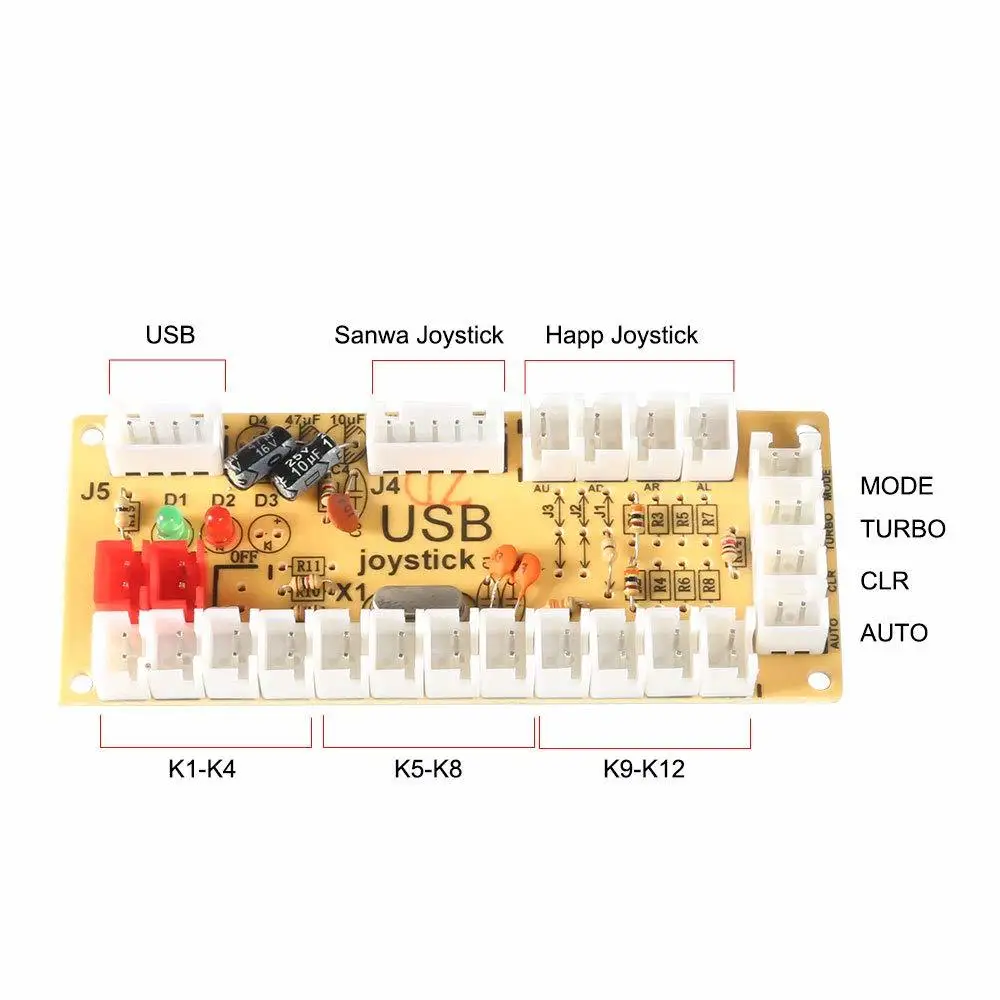

Start by getting the USB Encoder PCB board and take note of the connections. So youve just received your Zero Delay Arcade USB Encoder and its time to wire it up.
